Complementary (Balanced) Heterodyne Receiver

9006-027

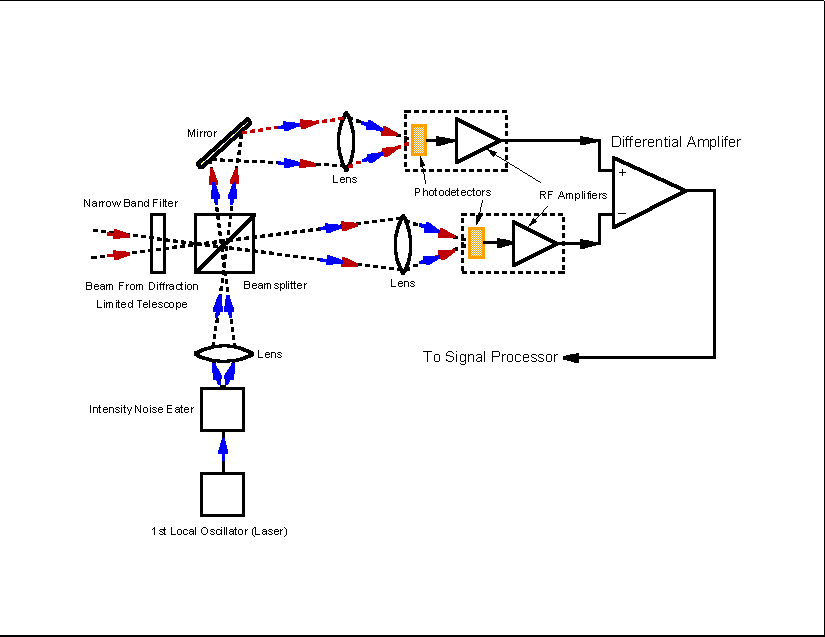

The schematic shows the basic construction of an optical heterodyne receiver employing complementary receivers. (10536 bytes)

This diagram shows an optical heterodyne receiver with a complementary photodetection system.  All the local-oscillator power is used, and two arrays of photodetectors.
