EG&G Photon Counter




Single Photon Counting Modules (SPCM)

The SPCM-AQ is a self contained module which detects single photons of light over the wavelength range of 400 nm to 1060 nm, a range and sensitivity which often outperforms photomultiplier tubes.


The SPCM-AQ-1XY utilizes a unique silicon avalanche photodiode which has a circular active area. The peak photon detection efficiency over a 180 µm diameter exceeds 70% at 700 nm. If a larger detection area is required, the SPCM-AQ-2XY has a peak photon detection efficiency over a 475 µm diameter that exceeds 35% at 630 nm. The photodiode is both thermoelectrically cooled and temperature controlled, ensuring stable performance despite changes in the ambient temperature.

The SPCM-AQ-1XY module utilizes a patented "active quench" circuit which can count to speeds exceeding 10 million counts per second. The SPCM-AQ-2XY can achieve 7 million counts per second. There is a "dead time" of 30 ns between pulses and single photon arrival can be measured with an accuracy of 300 ps FWHM.

The SPCM-AQ require a +5 volt power supply (a mating cable is supplied with each module). A TTL pulse, 2 Volts high in a 50 W load and 9 ns (SPCM-AQ-1XY) or 40 ns (SPCM-AQ-2XY) wide is output at the rear BNC connector as each photon is detected. To avoid a degradation of the module linearity and stability, the case temperature should be kept between 10ºC and 35ºC during operation.

Applications include: LIDAR, Photon Correlation Spectroscopy, Astronomical Observations, Optical Range Finding, Adaptive Optics and Ultra Sensitive Fluorescence.



SPCM-AQ Series Single Photon Counting Modules

Parameter Min Typ Max Units
Supply voltage: 1.6A max, 0.7A typ (1,2)

@ the module connector

4.75 5.0 5.25 V

@ the EG&G power cable wires end

4.90 5.1 5.30
Case Operating Temperature (1,4) 10   35 ºC
  -1XY -2XY -1XY -2XY
Active area (diameter) @ minimum Pd 170 425 180 475 µm
Photon Detection Efficiency (Pd)@ l = 400 nm 2.0 1.0 5.0 1.5   %
l = 630 nm 50 30 70 35
l = 830 nm 40 20 50 25
l = 1060 nm 1.0 0.5 2.0 1.0
Pd variation at constant case temperature (6)
(2h @ 25ºC)
  ±3 ±5 %
Pd variation, 10ºC to 35ºC case temperature (6)   ±5 ±10 %
Dark count (8)
SPCM-AQ-W1Y   1,000 2,000 Counts/s
SPCM-AQ-W2Y   250 500
SPCM-AQ-W3Y   150 250
SPCM-AQ-14Y   50 100
SPCM-AQ-15Y   - 50
SPCM-AQ-16Y   - 25
Average dark count variation at constant case temperature (2h @ 25ºC for (6,7):
SPCM-AQ-W1Y& -WY2 & -WY3     ±10%
SPCM-AQ-14Y & - 15Y & 16Y     ±1s
Average dark count variation 10º to 35ºC case temperature for (6,7):
SPCM-AQ-W1Y& -WY2 & -WY3     ±20%
SPCM-AQ-14Y & - 15Y & 16Y     ±2s
    -1XY -2XY -1XY -2XY
Dead time (Count rates below 5Mc/s)   30 70 50 100 ns
  -1XY -2XY -1XY -2XY
Output count rate before saturation (1) 10 7 15 10   Mc/s
Linearity Correction Factor (8):   -1XY -2XY -1XY -2XY
@ 200 kc/s   1.01 1.02
@ 1Mc/s   1.05 1.11
@ 5Mc/s   1.33 1.82 1.67 2.5
Afterpulsing probability   0.2 1.0 0.75 4 %
Single photon timing resolution (1XY only):   300   ps FWHM
Settling time following power up (1% stability) @ 1 Mcounts/sec and 25ºC   13 15 s
Threshold setting required for digital output pulse (Terminated in 50 W) 0.5 1.0 1.5 V
    -1XY -2XY
Pulse Width (Terminated in 50 W)   9 40   ns FWHM
Gating Turn On/Off:
On = TTL High (3V < VOn < 5.5V) @ < 10mA   100   2
Off= TTL Low (OV < VOff < 0.3V)   50



Notes:

1) Absolute maximum ratings:
Supply voltage - 5.3V
Mean Count Rate - 5Mc/s (Above this point, dead time will increase due to diode self-heating)
Peak Count Rate 10Mc/s for brief periods. See note 5 below for SPCM-151 and SPCM-161 modules
Case Temperature - 50ºC Storage, 35ºC Operating

2) Connection to incorrect voltage or reverse voltage may destroy the module. The warranty is invalid where such damage occurs.

3) These modules are not qualified for shock or vibration other than normal instrumentation environments.

4) The module dissipates a mean power of 3.5W, and a maximum power of 8W at high count rates and 35ºC. Adequate heatsinking must be provided by clamping the module to a suitable heatsink via the ¼"-20 blind nuts in the module base. For the specified performance, the module case temperature must not exceed 35ºC.

5) Bistability of the dark count. On a small percentage of delivered modules, bistability of the dark count has been observed. Research indicates that this bistability is probably due to transitions at a single impurity site between a lower energy and a high energy state. The phenomenon is seen as an abrupt change in the dark count rate, e.g. 350 to 390 c/s, and the dark count switches between the two states at a rate which depends on the detector temperature. Multilevel switching has also been observed, where more than one impurity site is switching. Also, the SPCM-151 and the SPCM-161 have a maximum count rate of 5Mc/s.

6) EG&G performs a 6 hour screen on temperature stability which includes dark count; this test also screens for bistability and multistability. Longer term bistability would not be detected by this test because the phenomenon is related to fundamental semiconductor physics and is outside EG&G's control. Warranty claims will only be entertained if the high level of the dark count exceeds the "max" level in the specification.

7) In the dark, the module generates random counts that follow a "Poission" distribution. In a Poissonnian process the standard deviation (s) is equal to the square root of the average counts. In this specification the "dark count variation" refers to the stability of the average count of the module.

8) The actual photon rate could be calculated using the following equation: ACF = [(OMCR x CF) - DC]/PDE
Where:
ACF = Actual Count RatePhotons
OMCR = OutputModule Count Rate
CF = Correction Factor @ the Module Count Rate
DC = Dark CountModule
PDE = Photon Detection EfficiencyModule

The theorical value of the Correction Factor follows this equation: CF = 1/[1-(tD x CR)
Where:
tD = Module Dead Time
CR = Output Count Rate

The deviation from an ideal linear system is another way of looking at the saturation effect. The following equations show how to calculate this departure from the linearity:

Linearity = [OMCR/(PhotonsActual Count Rate x PDE) + DC] - 1 = (1/CF) - 1






Ordering Guide 2

Standard fiber pigtail options. Standard length is 1.0 ± 0.1 meters.
Standard pigtail is FC terminated at one end, bare fiber at free end.
Part
Number
Fiber
Type
Fiber
Manufacturer
Diameter Numerical
Aperture
Core Cladding Outer
SPCM-QC4 Multimode Canstar 62.5 µm 125 µm 2.5 mm 0.27
SPCM-QC6 Multimode Canstar 100 µm 140 µm 2.5 mm 0.29
SPCM-QC8   As SPCM-QC6 but 905 SMA on free end
SPCM-QC8   As SPCM-QC6 but FC connector on free end

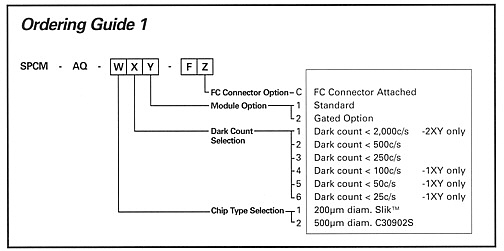

Fiber Connector Option - Ordering Guide 1

The SPCM-AQ-WXY-FZ has an "FC" fiber optic receptacle prealigned to the optical detector. Optical fibers with an FC connector on one end are available separately (See Ordering Guide 2). The photon detection efficiency of connectorized modules is about 90% of that quoted for standard modules.

Fiber Shielding - When used with optical fibers, both the fiber itself and the connector shrouds must be completely opaque; if not, stray light will increase the count rate. The SPCM-QCX pigtails conform to the requirement (See Ordering Guide 2).



Gating Option - Ordering Guide 1

The gating option is useful when you are looking for a signal that occurs only in a small time frame window. Also, in some applications the background light flux is higher than the signal. In this case, the gating option could be used to improve the S/N ratio by opening a window only when the light signal is present. The module may be gated by applying a TTL "high" level to the module Pin 4.




Figure 1 - Typical Photon Detection Efficiency vs Wavelength.

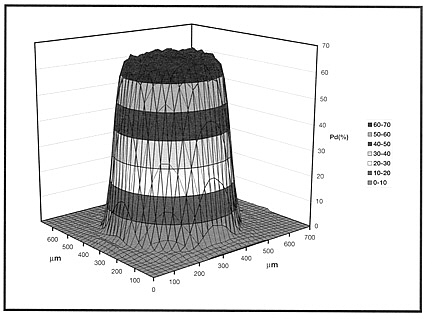

Figure 2 - Typical SPCM-AQ-1XY Photon Detection Scan @ 650 nm.

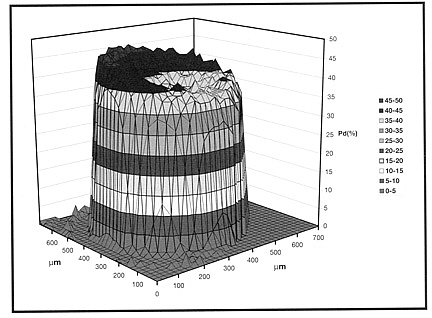

Figure 3 - Typical SPCM-AQ-2XY Photon Detection Scan @ 650 nm.

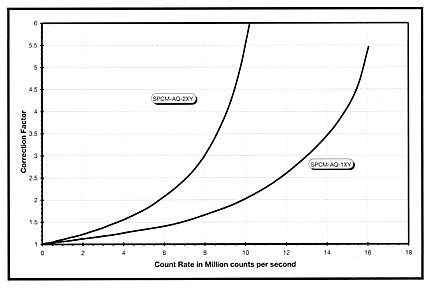

Figure 4 - Typical Correction Factor.

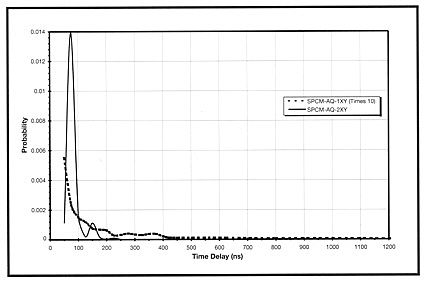

Figure 5 - Typical After Pulse Probability.

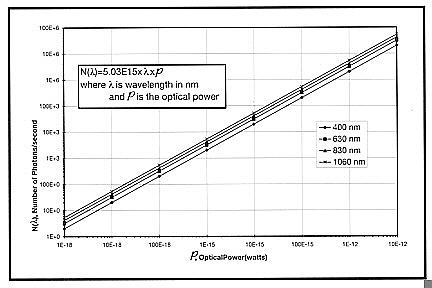

Figure 6 - Optical Power vs Number of Photons at Various Wavelengths
.



Saturation

At higher incoming light levels, the count decreases. The count at which the output rate starts to decrease is called the saturation point. As an extreme example, if the module is exposed to intense light, the count rate will fall to zero. Consequently, in certain applications, some tests should be performed by the operator to ensure that a low count rate is not caused by detector saturation.

Some precaution shall be taken to avoid any damage of the SPCM module: first, do not expose the detector to room light when the module is being powered up. Secondly, do not power up the module when the detector is exposed to a photon rate above 1Mc/s.



Timing Resolution

If the 300 ps FWHM (SPCM-AQ-1XY) timing resolution is inadequate, then the SPCM-PQ- CD2027 is currently available with a lower timing resolution. Call the factory for details.



Light Emission During Photon Detection

One peculiarity of silicon avalanche photodiodes is that as an incoming photon is detected, a small amount of light is emitted from the avalanche region. The light emitted has a broad spectral distribution. In most cases this is not a problem. However, it can cause some confusion if another detector is monitoring light, or if the optical system is such that light emitted from the SPCM-AQ is reflected back on itself. If these photons return after more than 30 ns after the initial event, then they will be detected.



Safety

The SPCM-AQ contains a high voltage power supply. All internal settings are preset; there are no user adjustments. Units which appear defective or have suffered mechanical damage should not be used because of possible electrical shorting of the high voltage power supply.

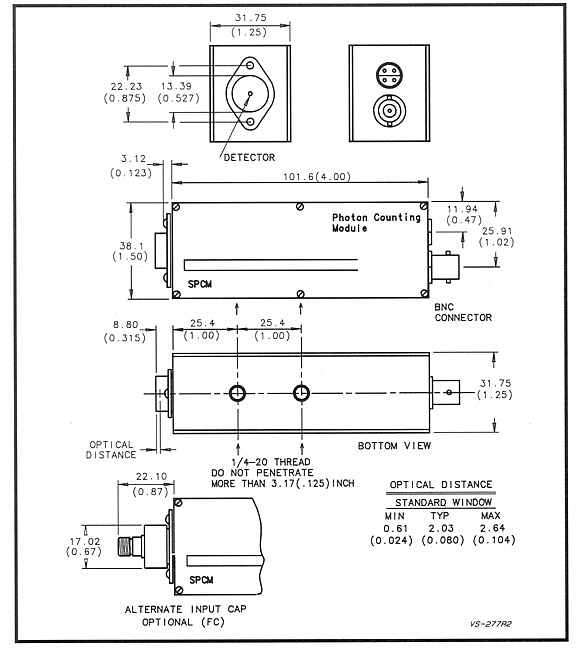

Figure 7
- Dimensions in mm (inches).
Do not warp the module walls during mounting since electronics components are attached to them.
The rated case temperature is 10ºC to 35ºC, so it is necessary to ensure good heatsinking and ventilation.

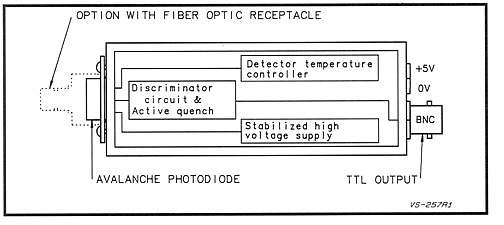

Figure 8
- Block Diagram of Module.




Figure 9 - Electrical Connections
. Pin 4 is N/C (no connection) if the gated mode is not ordered. Wire colors in brackets are internally connected in the cable assembly.



Note: The shield must be connected to the ground wire at the power supply end. This has been done in the 1 meter cable supplied. The digital output pulse, ³ 2.0V, should be terminated with a 50 W load to avoid distortion and ringing. A 1.0V triggering level is recommended.



Copyright, EG&G 1997
