Optical Fibers for Spectrometer



Single-strand optical fibers are silica-core and silica-clad, and are optimized for the UV-VIS (200-750 nm) or VIS-NIR (450-1000 nm). Standard assemblies are 2 meters in length, and are available in sizes ranging from 8 mm to 1000 mm in diameter. Spectral attenuation characteristics and fiber transmission characteristics -- the latter using Ocean Optics light sources and spectrometers -- are shown here.



Spectral Attenuation of UV-VIS Fiber




*

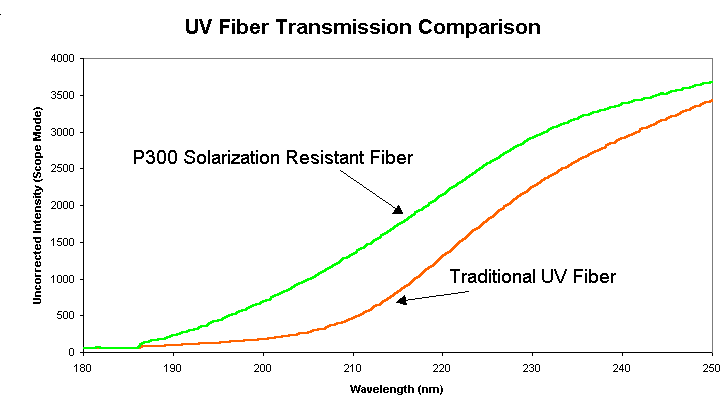

UV Fiber Transmission Comparison

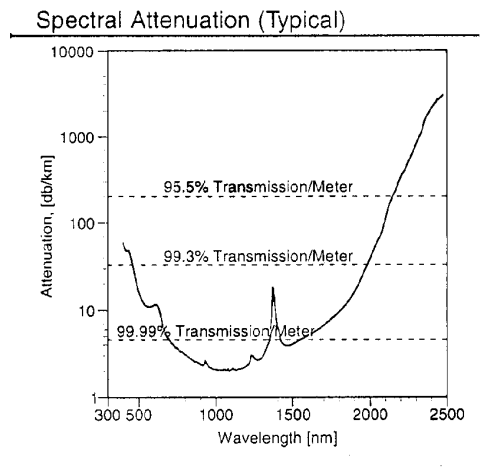

Spectral Attenuation of VIS-NIR Fiber




For more information, visit the Ocean Optics web site at: www.oceanoptics.com
