Spectrometer Grating Plots



Grating #1 Grating #2 Grating #3 Grating #4
Grating #5 Grating #6 Grating #7 Grating #8
Grating #9 Grating #10 Grating #11 Grating #12
  Grating #13 Grating #14



300 Lines/mm 600 Lines/mm 1200 Lines/mm
1800 Lines/mm 2400 Lines/mm 3600 Lines/mm

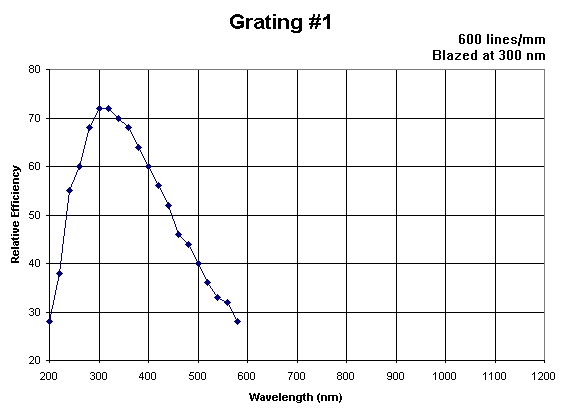

Grating #1

Back to Top

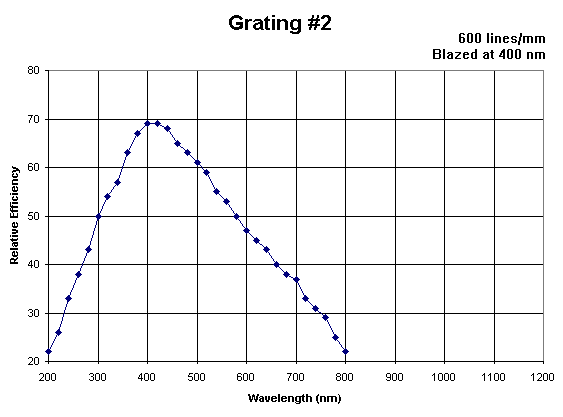

Grating #2


Back to Top

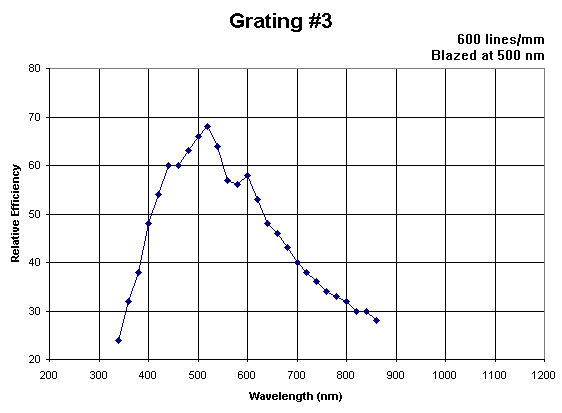

Grating #3


Back to Top

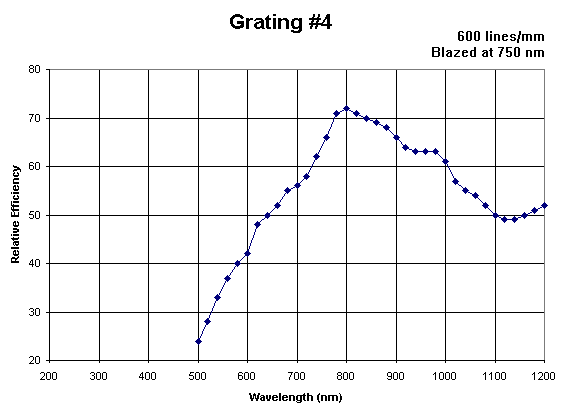

Grating #4


Back to Top

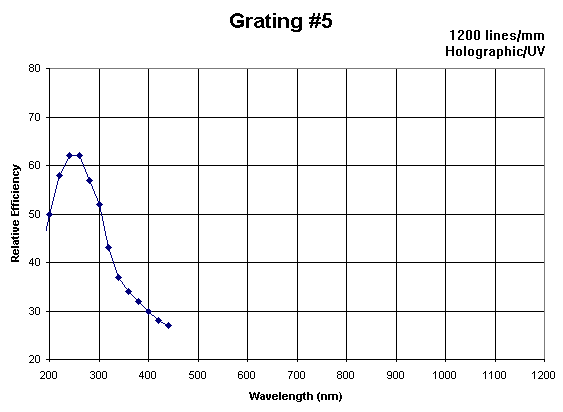

Grating #5


Back to Top

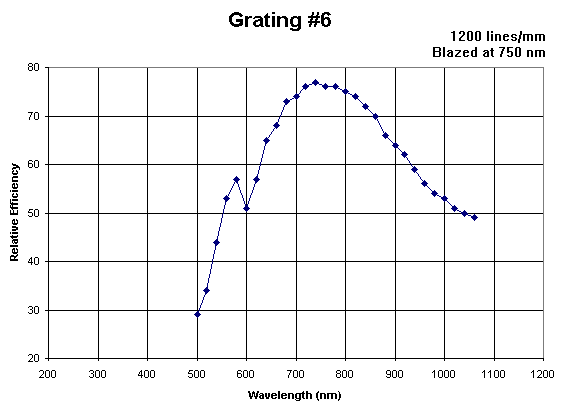

Grating #6


Back to Top

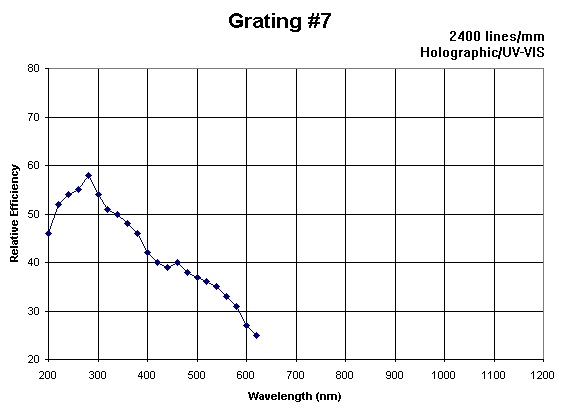

Grating #7


Back to Top

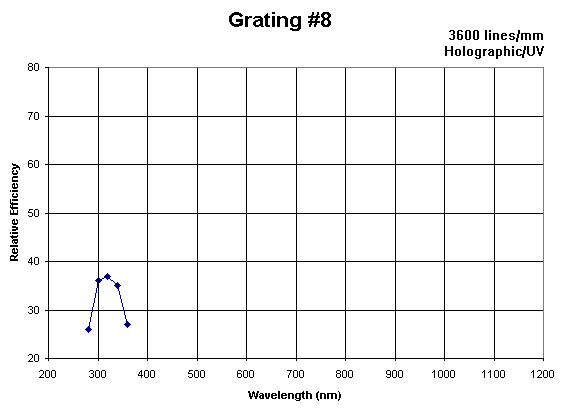

Grating #8


Back to Top

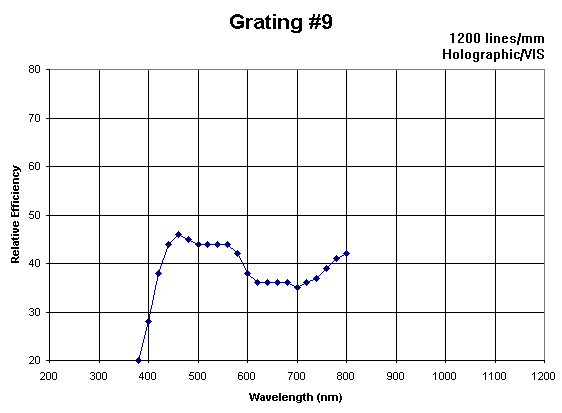

Grating #9


Back to Top

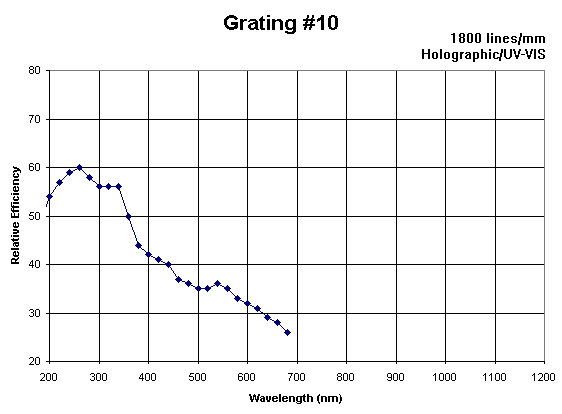

Grating #10


Back to Top

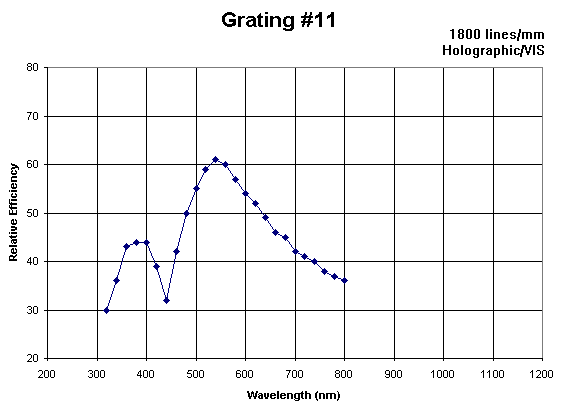

Grating #11


Back to Top

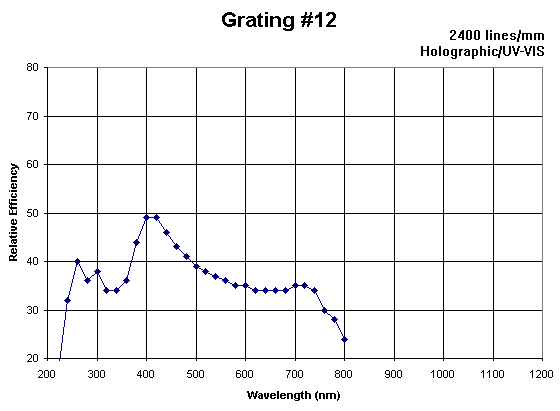

Grating #12


Back to Top

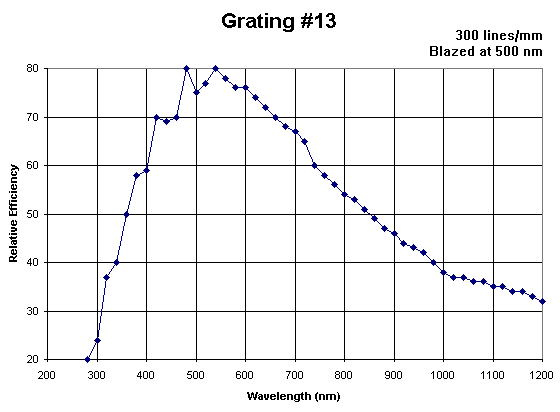

Grating #13


Back to Top

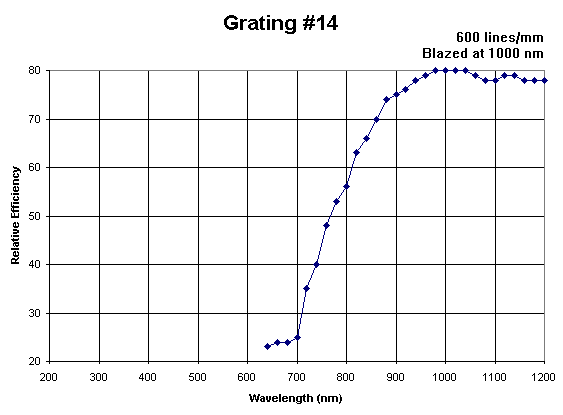

Grating #14


Back to Top

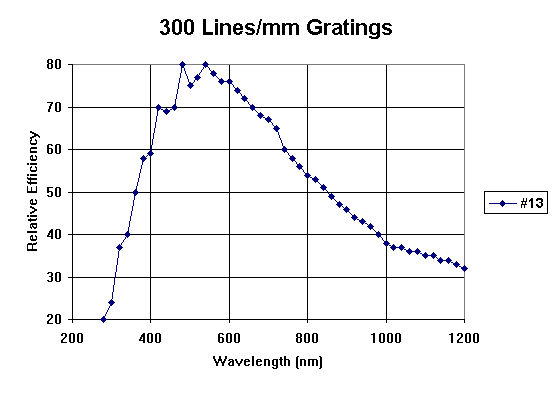

300 Lines/mm


Back to Top

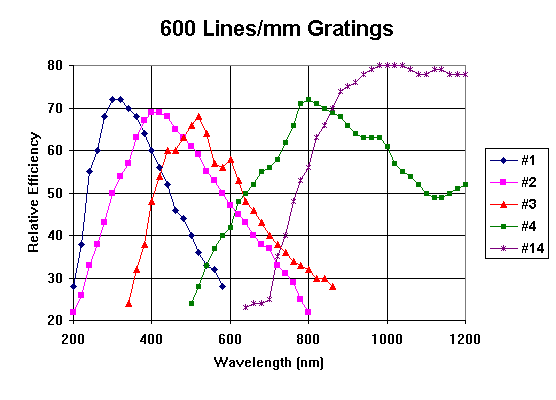

600 Lines/mm


Back to Top

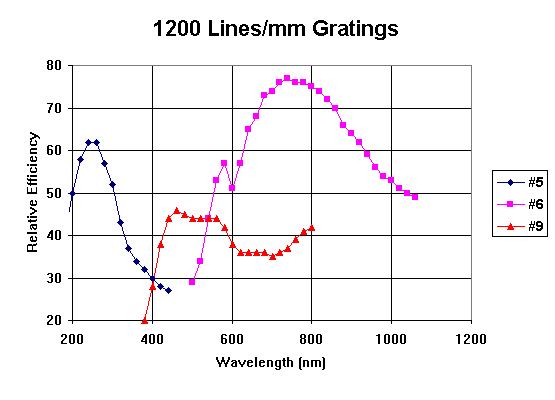

1200 Lines/mm


Back to Top

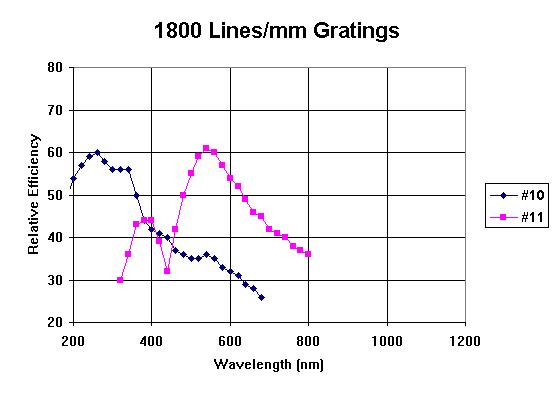

1800 Lines/mm


Back to Top

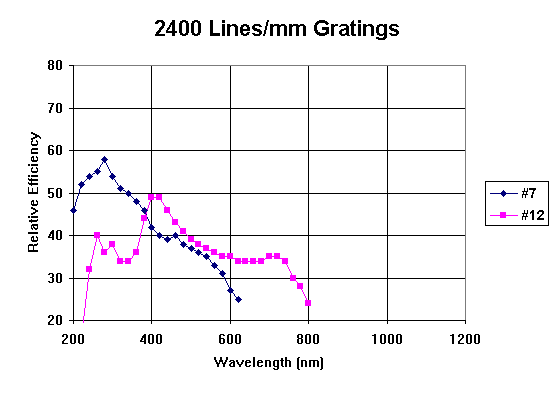

2400 Lines/mm


Back to Top

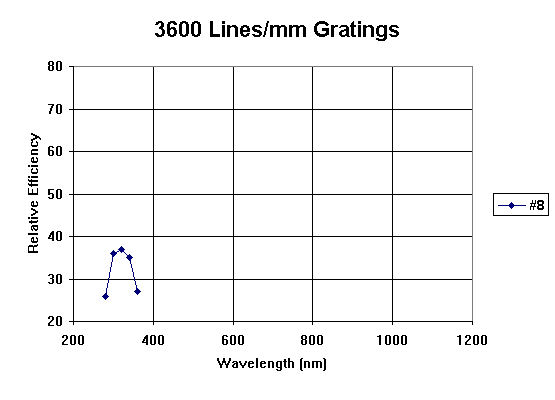

3600 Lines/mm


Back To Top
