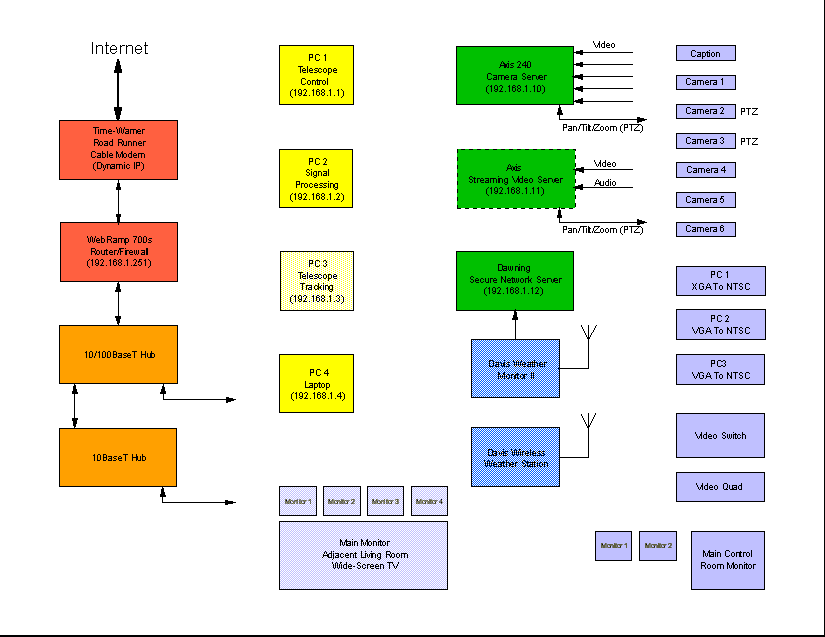

Internet Connectivity
Computers,
Servers, Firewalls, Modems & Video Sources |
Device |
Video Mode |
OS |
IP
Address |
Program |
Function |
Location |
Pentium
# PC 1 |
1280 x 1024 |
Win 98 |
192.168.1.1 |
TheSky IV |
Meade LX200 Control |
Control/Conference
Room |
Pentium
# PC 2 |
1024 x 768 |
Win 98 |
192.168.1.2 |
LabVIEW 5.1 |
Signal Processing |
Control/Conference
Room |
Pentium
# PC 3 |
1024 x 768 |
Win 98 |
192.168.1.3 |
SkyPro 2.0 |
CCD Imaging/Tracking |
Dome |
Pentium
# PC 4 |
800 x 600 |
Win 98 |
192.168.1.4 |
NA |
Laptop |
Control/Conference
Room |
Axis 240 Camera
Server* |
NA |
NA |
192.168.1.10 |
NA |
WebCam Multiplexer |
Control/Conference
Room |
Axis
Streaming Video Server** |
NA |
NA |
192.168.1.11 |
NA |
Occasional
Internet Broadcasts |
Control/Conference
Room |
Secure
Network Interface |
NA |
NA |
192.168.1.12 |
NA |
Davis
Weather Monitor II |
Control/Conference
Room |
WebRamp 700s
|
NA |
NA |
192.168.1.251 |
NA |
Internet
Gateway/Firewall |
Basement |
Cable Modem |
NA |
NA |
NA |
NA |
Road Runner |
Basement |
Videonics Titlemaker |
NTSC |
NA |
NA |
NA |
COSETI Video Title |
Control/Conference
Room |
Camera
1 |
NTSC |
NA |
NA |
NA |
Fixed
(Color) |
Front
of House |
Camera
2 |
NTSC |
NA |
NA |
NA |
Pan/Tilt/Zoom
(Color) |
Control/Conference
Room |
Camera
3 |
NTSC |
NA |
NA |
NA |
Fixed
(Color) |
Back
of House |
Camera
4 |
NTSC |
NA |
NA |
NA |
Fixed
(B&W) |
Dome |
Camera
5 |
NTSC |
NA |
NA |
NA |
Fixed
(Color) |
Dome |
Camera
6 |
NTSC |
NA |
NA |
NA |
Fixed
(B&W) |
Telescope |
* Publicly accessible over the Internet if provided with IP
address.
** Not yet available.
Click on the above for more information
about this schematic
|
